    SDE9 50Mn 25 Inch Solar Tracker Slew Drive For Precise Antenna Satellite Tracking


    SDE9 Solar Tracker Slew Drive With Controller For Precise Antenna And Satellite Tracking

    Description


    The slewing drives with encoders are used in Antenna or Satellite tracking which need high precise and need feedback of the rotating. The slewing dives are with 0.05° tracking precision and come with an IP66 rated protection grade, which protects the drive from outdoor harsh environmental conditions as well as dirt, sand, dust and even water. The drive is designed in such a way that huge loads can be carried with compact form while insure the tracking presicion. The gears used in the assembly could be hardened if necessary according to customers's different applications, so that they provide maximum durability and longer life.


    SDE Model Performance Parameters


    ModelRated Output Torque (N.m)TiltingTorque (N.m)Holding Torque (N.m)Axial Load (kN)Radial Load (kN)RatioEfficiencyPrecision (degree)IPSelf-lockingWeight (kg)
    3"60015005800101531:140%≤0.1066Yes25kg
    5"80060009200162737:140%≤0.1066Yes34kg
    7"2000750013200345857:140%≤0.1066Yes56kg
    9"430016000272006013061:140%≤0.1066Yes92kg
    12"580025000405607719078:140%≤0.1066Yes160 kg
    14"6750480004420011023085:140%≤0.1066Yes224kg
    17"94606700053040142390102:140%≤0.1066Yes320kg
    21"160008900065000337640125:140%≤0.1066Yes492kg
    25"2145011200089000476950150:140%≤0.1066Yes705 kg

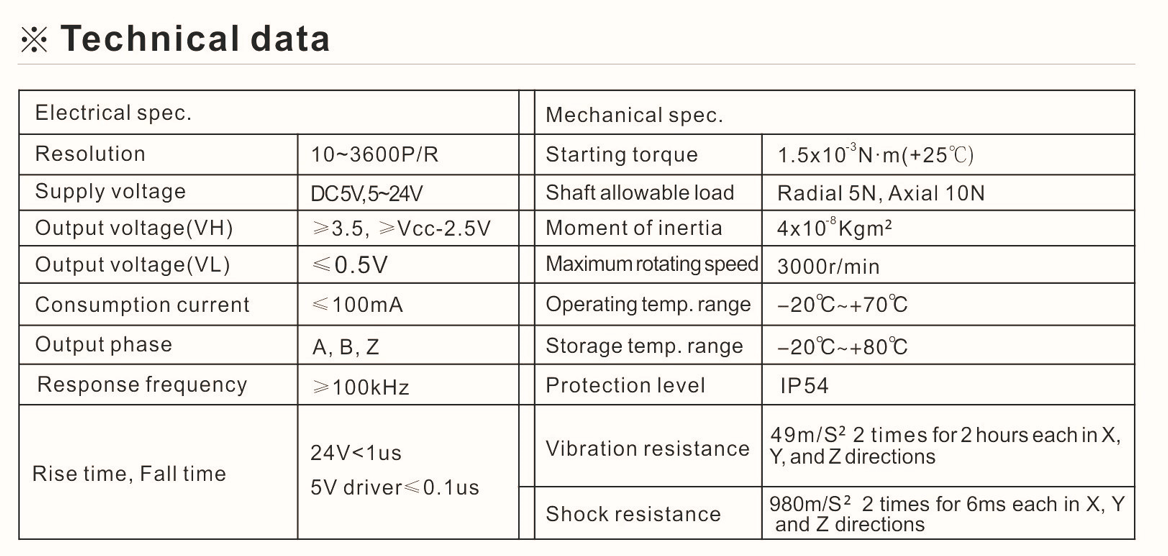

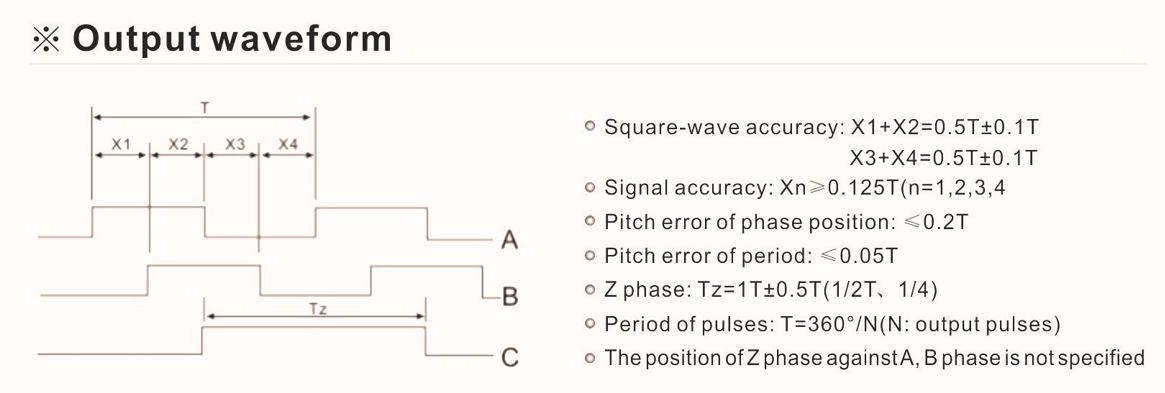

    ENCODER




    Controller


    Parameter:

    • Tracking accuracy: < plus 0.1 degrees (in fine weather)
    • Input power: DC24V
    • Output power: DC24V/8A
    • Remote control: RS 485 bus, LoRa wireless module (optional)
    • Protection rating: IP65
    • Ambient temperature: -25℃ to 50℃


    Configuration and Features:

    • Die-cast aluminum box 240× 160×75
    • MCU control, astronomical algorithm and light sensitivity
    • High winds, temperature protection interface, short-circuit protection, overcurrent protection
    • Night reset east or horizontal
    • Run the function manually
    • PWM slow start function
