VE5 40 To 1 Gearbox For Solar Panel Horizontal Single Axis Trackers

Enveloping Worm Gear Description

The slewing drive is a new type of rotary and transmission product. It is usually called slewing drive or slewing bearing, which is usually composed of double enveloping worm, gear, housing, motor and other components. Since the core components are the double enveloping worm, it can mesh with the gear more closely and to achieve multi tooth contact, thus improve the accuracy and the holding moment torque. They can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.

Performance Parameters of VE Series

Applications

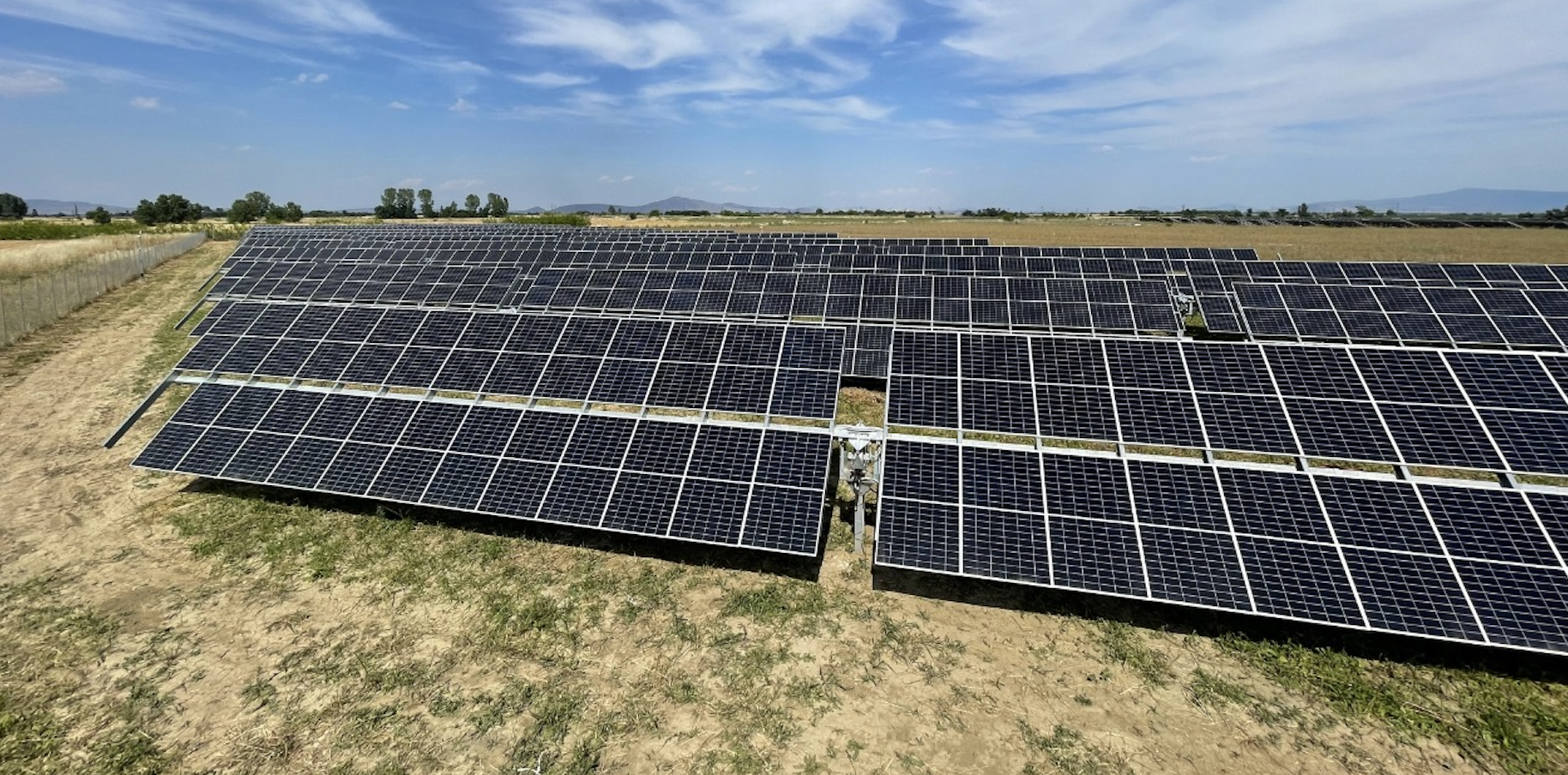

There are 10 different sizes of VE type slewing drives, starting from 3' size to 25" inch, among them are 5", 7", 9" 12", 14", 17" , 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.

Changzhou Hangtuo Mechanical Co., Ltd is a high-tech enterprise integrated with research and development, production and sales. We focus on the research and development of slew bearings, high-precision slew drives, and planetary gear motors. We are committed to provide customers with reliable, diversified, high-quality and customized solutions.

Our products are widely used in solar photovoltaic, photothermal, satellite, robot, engineering machinery etc. We will always devote to continuous product improvement and the implementation of strict quality control standards, and will continue to strive to meet the growing needs of customers.
