    Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant

    Ask Lasest Price
    Brand Name : HangTuo
    Model Number : VE6"
    Certification : CE, ISO9001
    Price : USD 100~1100 / pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 pcs per month
    Delivery Time : 15~45 days
    • Product Details
    • Company Profile

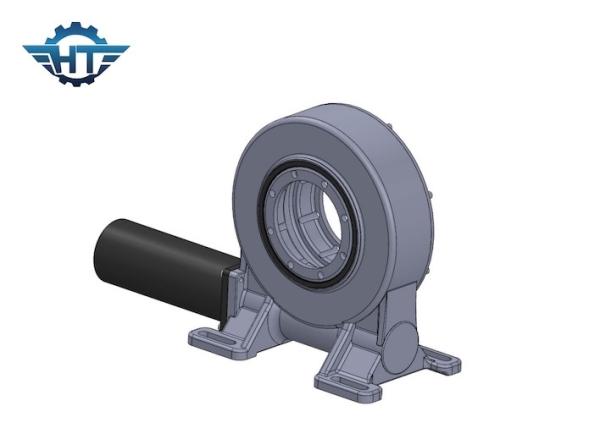

    Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant

    Enveloping Worm Slew Drive Gearbox For CSP And CPV Solar Power Stations​


    Slew Drive Gearbox Description


    Rotary reducer, English name: Slewing drive, is a type of reducer. It uses a slewing bearing (commonly known as a turntable) as the follower of the reducer, which can realize unlimited circular rotation and deceleration, and can withstand large axial forces, Radial and overturning forces. This kind of device can be applied to all kinds of mechanical equipment with rotating requirements. In particular, this kind of reducer has the advantages of high precision, compact structure and large bearing capacity, and is suitable for use in relatively harsh working conditions.


    VE Slewing Drive Performance Data


    VE Model Performance Parameters
    ModelRated Output Torque (N.m)Holding Torque (N.m)Tilting Torque (N.m)Axial Load (kN)Radial Load (kN)RatioPrecision (degree)PrecisionIPWorking Tep (℃)Self-lockingWeight (kg)
    3"60018001500221531:140%≤0.1066-40~+120Yes12kg
    5"80092005000162737:140%≤0.1066-40~+120Yes18kg
    7"1750132007000345857:140%≤0.1066-40~+120Yes32kg
    8"22502040011200508051:140%≤0.1066-40~+120Yes28kg
    9"430030800160006013061:140%≤0.1066-40~+120Yes52kg
    12"560040560250007719078:140%≤0.1066-40~+120Yes65kg
    14"6750442004800011023085:140%≤0.1066-40~+120Yes88 kg
    17"94605304067000142390102:140%≤0.1066-40~+120Yes135 kg
    21"160006500089000337640125:140%≤0.1066-40~+120Yes192 kg
    25"2145089000112000476950150:140%≤0.1066-40~+120Yes251 kg

    Enveloping Worm Slew Drive Gearbox For CSP Solar Power Stations Wear Resistant


    Multiple Options


    1. Gear reduction ratio 31:1 to 150:1

    2. Horizontal, vertical, or combination of multiple axis mounting

    3. Single worm or double worm

    4. Electric or Hydraulic motor option

    5. Housing: Open or Closed

    6. Customized input configurations

    7. Custom designs per application requirements
