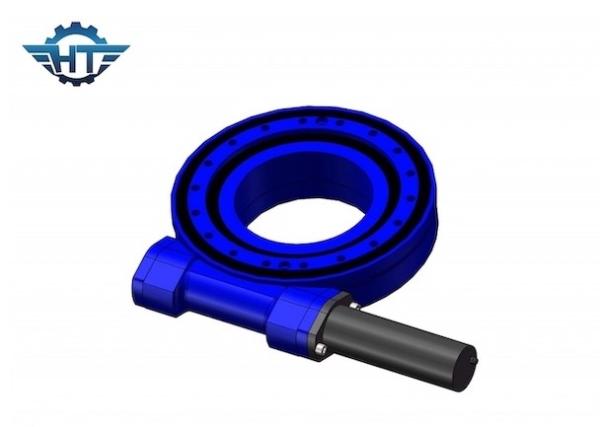

Worm Drive SE9 IP66 Solar Slew Drive For Long Life Outdoor PV Tracking System
Worm Drive Solar Slew Drive Description
Slewing drives can be used in solar-powered single-axis tracking
systems.
Single-axis tracking: As the name implies, there is only one
rotation axis to change the position and angle of the solar panel
to maximize the intensity of sunlight perpendicular to the solar
panel, thereby improving the photovoltaic conversion rate. The
slewing drive enables the photovoltaic system to achieve angular
changes.
Single-axis tracking can be divided into: horizontal single-axis
tracking, tilted single-axis tracking, and vertical single-axis
tracking according to the orientation of the rotation axis.
Single-axis rotary drives are generally used in horizontal
single-axis tracking systems, tilted single-axis tracking systems
and vertical single-axis tracking systems.
Parameters of SE9
| Model | SE9 |
| Ratio | 61:1 |
| Rated Output Torque (N.m) | 4400 |
| Max Output Torque (3 sec)(N.m) | 5612 |
| Rated Rotate Speed (RPM) | 0.03 |
| Tilting Torque (N.m) | 16000 |
| Holding Torque (N.m) | 27200 |
| Axial Load (kN) | 60 |
| Radial Load (kN) | 130 |
| Efficiency | 40% |
| Precision (°) | 0.1 |
| Self-locking | Yes |
| Weight (kg) | 49 |
| Installation Holes | 8*M16 |
| Center Circle Diameter | Φ 224 mm |
| Inner Hole | Φ 198 mm |
| Work Temperature | － 30℃ ~＋80℃ (optional special grease used in colder or hotter places) |
| Gear Motor Matched | 24V, 2RPM, 134W, 180Nm, ＜5A |
| Warranty Policy | Slew drive 5 years, motor 1 year, warranty extension available |
Our Packing & Transport
All slew drives will be packed with fumigration-free wooden case.
Support sea transportation , air transportation, road transportation, Express such as TNT, DHL,UPS,EMS, Fedex,etc for sample and small cargo transportation.
Application
Our SE9 slewing drive can be widely used in PV, CPV, STP, CSP solar tracking systems and construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc. We can also provide multiple size of slewing drive and slewing berarings, hydraulic motor & DC Motor to match with slewing drives.
|
|
