Providing Innovative and Cost-effective Slewing Drives
7 Years
| Ask Lasest Price | |
| Brand Name : | HangTuo |
| Model Number : | VE9" |
| Certification : | CE, ISO9001 |
| Price : | USD 280~504 / pc |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 15~45 days |

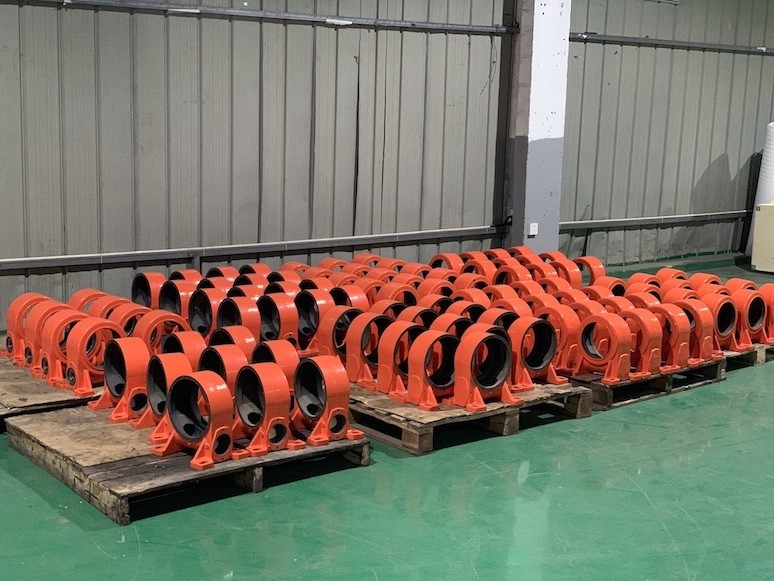

Vertical Hourglass Worm Gear Solar Slew Drive For Solar Panel Tracking System
Worm Gear Solar Slew Drive Description
Hangtuo's enveloping worm rotary drive is completely derived from its own technology, with unique processing technology and full numerical control of the processing process, so the product quality is highly controllable, the manufacturing accuracy is far higher than the level of similar products, and the performance of the finished product is also Much higher than other similar products. In addition to the stereotyped products, the enveloping worm and the matching worm gear can be flexibly optimized and configured according to user needs. According to different use requirements and environments, the enveloping worm can be made of a variety of materials and can be subjected to various specific heat treatments to make the product more in line with user needs in terms of durability. Such slewing drive products are the best choice for occasions that require long-term maintenance-free operation in outdoor environments such as solar and wind energy applications.
Technical Data of VE Model Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
There are many applications where a rotary drive can be used,
primary because it is well suited for applications that require
load to maintain power and rotational torque.
Typical swing drive applications include, but are not limited to:
1.Solar tracker
2.Wind Turbines
3.Men's lift
4.Hydraulic machinery
5.Telehandler
6.Excavator
7.Lift
8.Cranes
9.Drilling equipment
10.Military equipment
|
|
