SDE3 Top Precision Slew Drive Gearbox For Heliostat And Dual Axis Solar Tracking System
Quick Details
· Place of Origin: China (Mainland)
· Brand Name: Hangtuo
· Model Number: dual axis slewing drive
· Type: slew drive, dual axis slewing drive
· Product name: heliostat dual axis slewing drive

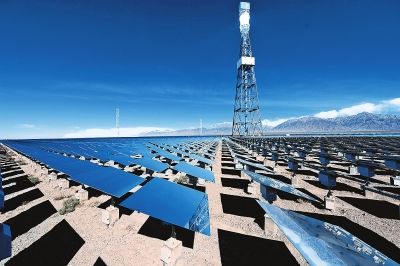

· Application: heliostat tower solar station
· Motor: DC or AC or other
· Size: 3-21 inch
· Work life: 30 years
· Warranty: 36 months
· Protection class: IP55/IP66
· OEM: accepted
· Color: as requested
SDE3 dual axis slewing drive
Hangtuo Slewing Drive is a professional slewing drive research and
development manufacturer,which are widely applied on new
energy(single and dual axis PV/CPV/CSP solar tracking system,wind
power),engineering machinery(pavement construction machinery, port
facilities and mining area), satellite receiver and other fields.
In the development of new productions constantly updated, Our
slewing drives are designed with slewing ring and hourglass worm
shaft, from the traditional point contact to surface contact, which
has the advantage of strong output torque, smooth rotation and
wear-resisting for bearing higher radial & axial load and tilting
moment torque.
There are kinds of models of productions in our company from 3'' to
25''(raceway diameter).The slewing drive can be customized to meet
the special requirement for new energy and engineering machinery
application .Our production are being chosen by customers abroad
and home with reliable quality and reputation.
Features
1. Strong overturning moment based on slewing ring
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Better static self-locking function
Performance Chart of Dual Axis Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
|
|
