    Worm And Worm Wheel SDE7 Dual Axis Slew Drive With 24 VDC Planetary Gear Motor

    Worm And Worm Wheel SDE7 Dual Axis Slew Drive With 24 VDC Planetary Gear Motor​


    Slew drive for dual axis solar tracker


    The solar trackers can be divided into single-axis trackers and dual-axis trackers by taking into account the mechanical characteristics. Since dual-axis systems are able to obtain an optimal tracking of the sun, they are more popular in all the types of concentrated solar technologies, with the exception of the trough-style system.


    We have hydraulic motors and electric motors for the slew drives according to its different working conditions, details data as below:


    Electric gear motor


    Motor DataPlanetary Data
    Rated Voltage24VDCRatio398:1
    Rated Current1.3AOutput Torque43Nm
    Rated Speed800RpmOutput Speed2Rpm
    Protected LevelIP55/65/66Noise<60db

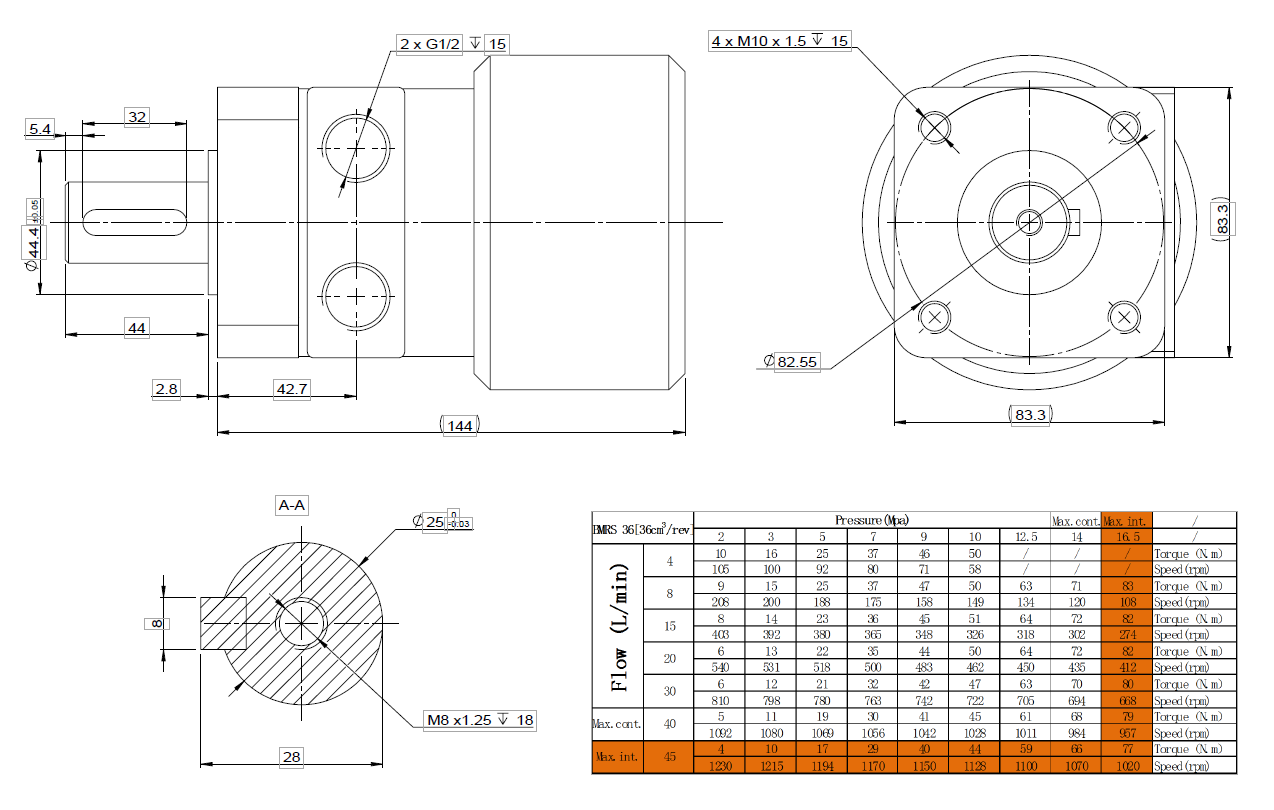

    Hydraulic gear motor


    Glossary of Key Parameters


    Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the qorque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.

    Radial load: Load vertical to the axis of slewing bearing

    Axial load: Load parallel to the axis of slewing bearing

    Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque.

    Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.


    SDE Model Performance Parameters


    ModelRatioRated Output Torque(N.m)Tilting Torque(N.m)Holding Torque(N.m)Axial Load(kN)Radial Load(kN)EfficiencyPrecision(°)Self-lockingWeight(kg)
    3"31:160015005800101540%≤0.1Yes25
    5"37:180060009200162740%≤0.1Yes34
    7"57:12000750013200345840%≤0.1Yes56
    9"61:1430016000272006013040%≤0.1Yes92
    12"78:1580025000405607719040%≤0.1Yes160
    14"85:16750480004420011023040%≤0.1Yes224
    17"102:19460670005304014239040%≤0.1Yes320
    21"125:116000890006500033764040%≤0.1Yes492
    25"150:1214501120008900047695040%≤0.1Yes705
