Providing Innovative and Cost-effective Slewing Drives
7 Years
| Ask Lasest Price | |
| Brand Name : | HangTuo |
| Model Number : | SE12" |
| Certification : | CE, ISO9001 |
| Price : | USD 280~504 / pc |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 15~45 days |

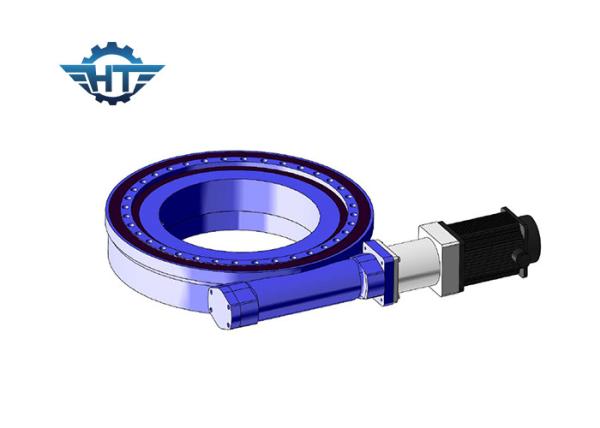

High Strengthen Gear Ratio 31 To 150 Slewing Bearing With Electric Motors For Construction Machinery
Description
(1) We have first-class testing equipment to detect the parameters of the worm and gear and control the quality of the slewing drives.
All the spareparts must be detected to check if the quality is qualified and the unqualified parts will be eliminated directly.
(2) We have our own experienced R & D team to give customer better solutions and help customers to solve the problem.
We can design customers own logo to show on the nameplate
(3) Price. Prices are quite different between different manufacturers based on the manufacturers scale , supply chain management etc. Our price is not the lowest but is among the competitive.
Performance Table
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Installation Instructions
The SE series slewing drives are generally installed horizontally. And we also recommend to install horizontally considering the performance of the slewing drives.
Features
1. Those products are designed for long life, working in hard environment conditions.
2. Various sizes available, including customized.
3. Easy to installation and product warranty.
Applicatons
The SE series slewing drives are usually applied in wind turbines, solar energy power stations, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
|
|
