SE1 Worm Gear Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System
Product Description
1. Tooth type: Helical tooth
2. Bearing load: light load
3. Drive type: Motor drive
4. Diameter of rotary center: 40mm
5. Module: 5
6. Number of worm shafts: 1
7. Gear Ratio: 28: 1
8. Efficiency: 40%
9. Self-locking gears: YES
10. Weight: 6kg
Sales Drawing

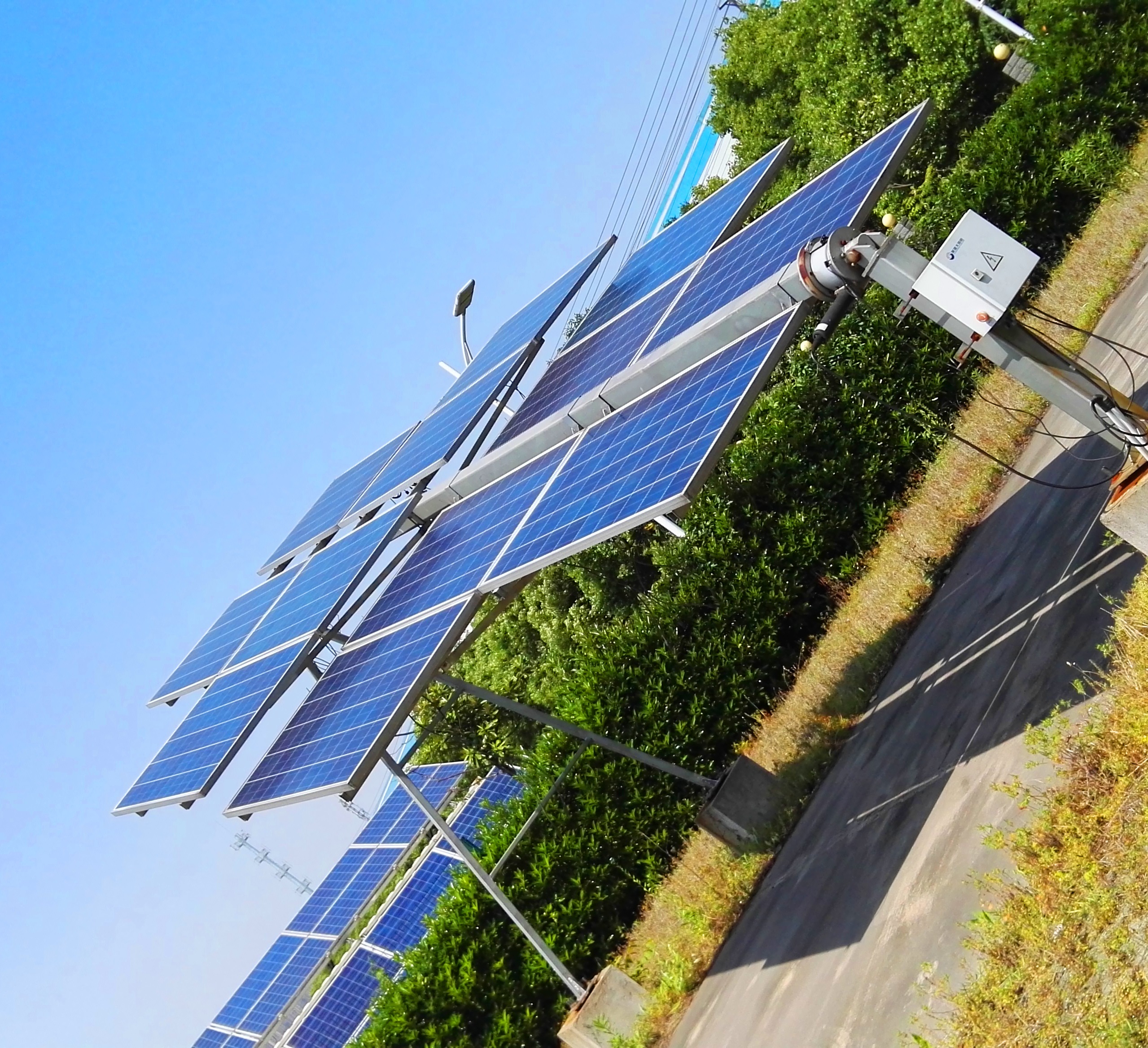

slewing drives are widely applied in horizontal single axis tracking system, inclined single tracking system and dual axis PV solar tracking system, heliostat solar tower system, parabolic trough concentrated power station, solar dish tracker and linear fresnel thermal system, as well as marine crane, lift crane, timber grab, mining equipment, cutting equipment, aerial working platform, truck crane, drilling rig, turn table, automation line and so on.
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Remark: For more detailed dimensions and parameters, please refer
to our sales drawings.
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic
motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard
color is RAL 9006.
|
|
