Providing Innovative and Cost-effective Slewing Drives
7 Years
| Ask Lasest Price | |
| Brand Name : | HangTuo |
| Model Number : | VE5" |
| Certification : | CE, ISO9001 |
| Price : | USD 280~504 / pc |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 0~10 days |

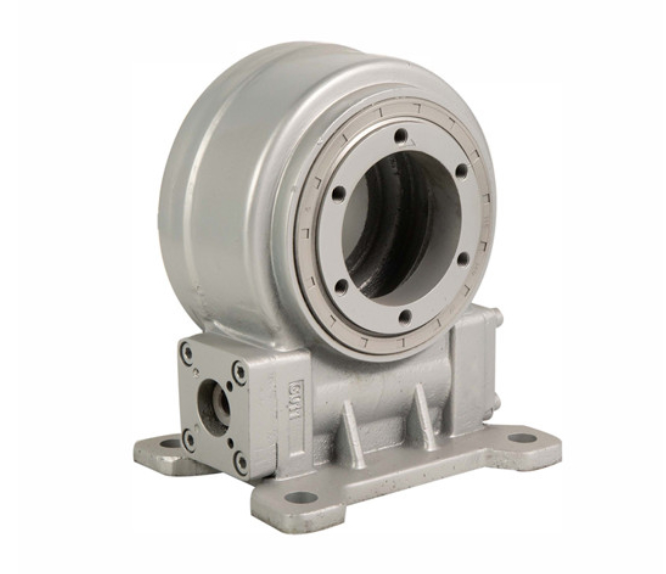

VE5 Worm Gear Slew Drive, IP66 Enclosed Housing For Parabolic Trough Power Stations
Description
Vertical 5 inch high precision slewing drive could be applied in parabolic trough power plants (PTPP). It is a kind of developed thermal power station which can generate electricity by collecting the heat of the sun to the high temperature fluid.
The parabolic through power plants consists of:
VE5 Performance Parameters
| Model: | vertical 5 inch slewing drive |
| Rated Output Torque: | 800 Nm |
| Tilting Torque: | 5000 Nm |
| Axial Load: | 16 kN |
| Radial Load: | 27 kN |
| Holding Torque: | 9200 Nm |
| Efficiency: | 40% |
| Precision: | ≤0.1 ° |
| Self-locking: | Yes |
| Weight: | 18 kg |
The slewing drives play a key role in the tracker system.
Features
1. Excellent backholding torque to ensure the safety
2. High precision to ensure a stable reflector
3. High IP rating to improve service life in outdoor comlicated conditions
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic
motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard
color is RAL 9006.
Shipping
Express: door to door, just need to pay the import tax if required by the custom.
By air or by sea: factory to destination airport/sea port, need pay destination fee charged by the airport(the destination fee is always charged by per B/L regardless of the package is big, small, heavy or light, in gerneral 200~400 USD per cargo) and import tax if required by the custom.
By train: sometimes the shipping price is the same as sea but taking less shipping time than sea, we will take this shipping way into consideration if the goods are in urgent need by our clients.
|
|
