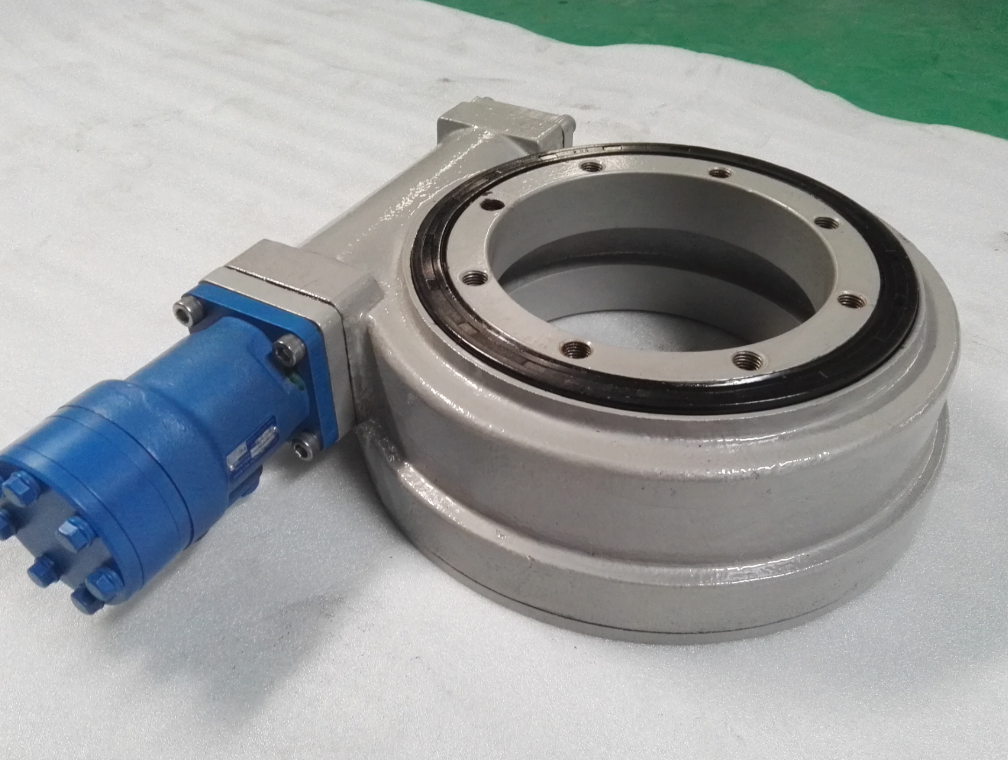

SE9 Horizontal Mounted Model Worm Gear Slew Drive With Servo Motors For Automation Equipment
Advantages
1. Strong overturning moment
2. Adopt enveloping worm drive
3. Multi tooth contact, high load capacity
4. Self-locking function
Worm drive is a higher wear-resistance of worm gear drive, which
have high load capacity and tilting moment torque to ensure
stability, reliability and well performanced. The worm drive is also available for higher tracking precise field.
SE9 Performance Parameters
| Model: | horizontal 9 inch worm drive |
| Rated Output Torque: | 4300 Nm |
| Tilting Torque: | 45000 Nm |
| Axial Load: | 340 kN |
| Radial Load: | 130 kN |
| Holding Torque: | 31000 Nm |
| Efficiency: | 40% |
| Precision: | ≤0.1 ° |
| Self-locking: | Yes |
| Weight: | 49 kg |
SE Slewing Drive Data
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
|
|
