Worm Gear Single Axis Solar Tracker Gearbox Matched With 12/24vdc
Motors For Csp
Description
Our slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm and other standard hardware accssories. We can also match different kinds of motors such as 12VDC or 24VDC electronic planetary gear motors, hydraulic motors , which can moves for clockwise direction and counter clockwise direction rotation with stable performance and high efficiency.

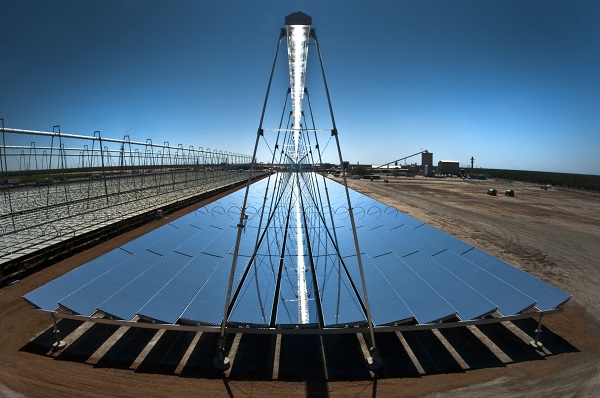

SE3 3 inch single axis slew drives have widely applications such as flat single axis tracking system, oblique tracking system, parabolic trough, fresnel and heliostat power stations.
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Technical Data
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Effeciency | Precision (degree) | IP | Working Temp.(℃) | Self-locking | Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 28:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 8 |
| 5" | 800 | 6000 | 4700 | 68 | 27 | 37:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 7100 | 132 | 58 | 57:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 204 |
Remark: For more detailed dimensions and parameters, please refer to our sales drawings.
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic
motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard
color is RAL 9006.
|
|
