    High Holding Torque Dual Axis Slew Drive For Solar Tracker With 12V Geared Motor

    Ask Lasest Price
    Brand Name : HangTuo
    Model Number : SDE7"
    Certification : CE, ISO9001
    Price : USD 398~456/ pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 pcs per month
    Delivery Time : 15~45 days
    • Product Details
    • Company Profile

    High Holding Torque Dual Axis Slew Drive For Solar Tracker With 12V Geared Motor


    High holding Torque Dual Axis Slew Drive With 12V Geared Motor For Solar Tracking System


    Description


    Dual axis slew drives are perfect solutions in the dual axis solar tracking applications.


    Dual axis slew drive have three types solutions with slew drives:


    In general, for easy bracket structure, the sde slew drive would be the perfect solution, but the other two are also very popular.


    • Two SE slew drives
    • One SE slew drive and one VE slew drive

    Slew Drives Applied In PV


    Product NameSDE7 Slewing drive with 43Nm 24Vdc gear motors
    Output Torque980 N.m ; 723 ft.lbs
    Max Output Torque1938 N.m; 1429 ft.lbs
    Tilting Moment Torque7000 N.m; 5163 ft.lbs
    Holding Torque13200 N.m ; 9736 ft.lbs
    Static Axial Rating133.20 kN ; 29943 lb
    Static Radial Rating53 kN ; 11977 lb
    Dynamic Axial Rating31.90 kN ; 7171 lb
    Dynamic Radial Rating27.91 kN ; 6274 lb
    Motor Alternatives380V/220V AC Motor ; Stepper Motor ; Brushless Motor
    Products StyleDual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower
    Application FeatureSolar Tracking System, Industrial Machiner

    Performance Table


    ModelRatioRated Output TorqueTilting TorqueAxial LoadRadial LoadHolding TorqueEfficiencyPrecisionSelf-lockingWeight
    N.mN.mkNkNN.mdegreeYeskg
    3"31:130015003.615700040%≤0.1Yes21kg
    5"37:165050001627920040%≤0.1Yes32kg
    7"57:11750700034581320040%≤0.1Yes54kg
    9"61:1430016000601302720040%≤0.1Yes88kg
    12"78:1560025000771904056040%≤0.1Yes157 kg
    14"85:16750480001102304420040%≤0.1Yes214kg
    17"102:19460670001423905304040%≤0.1Yes315kg
    21"125:116000890003376406500040%≤0.1Yes481kg
    25"150:1214501120004769508900040%≤0.1Yes682 kg

    Features


    1. High backholding torque to improve the solar tracking system's safety

    2. Enveloping worm drive inside

    3. Multi tooth contact to ensure high load

    4. Self-locking function

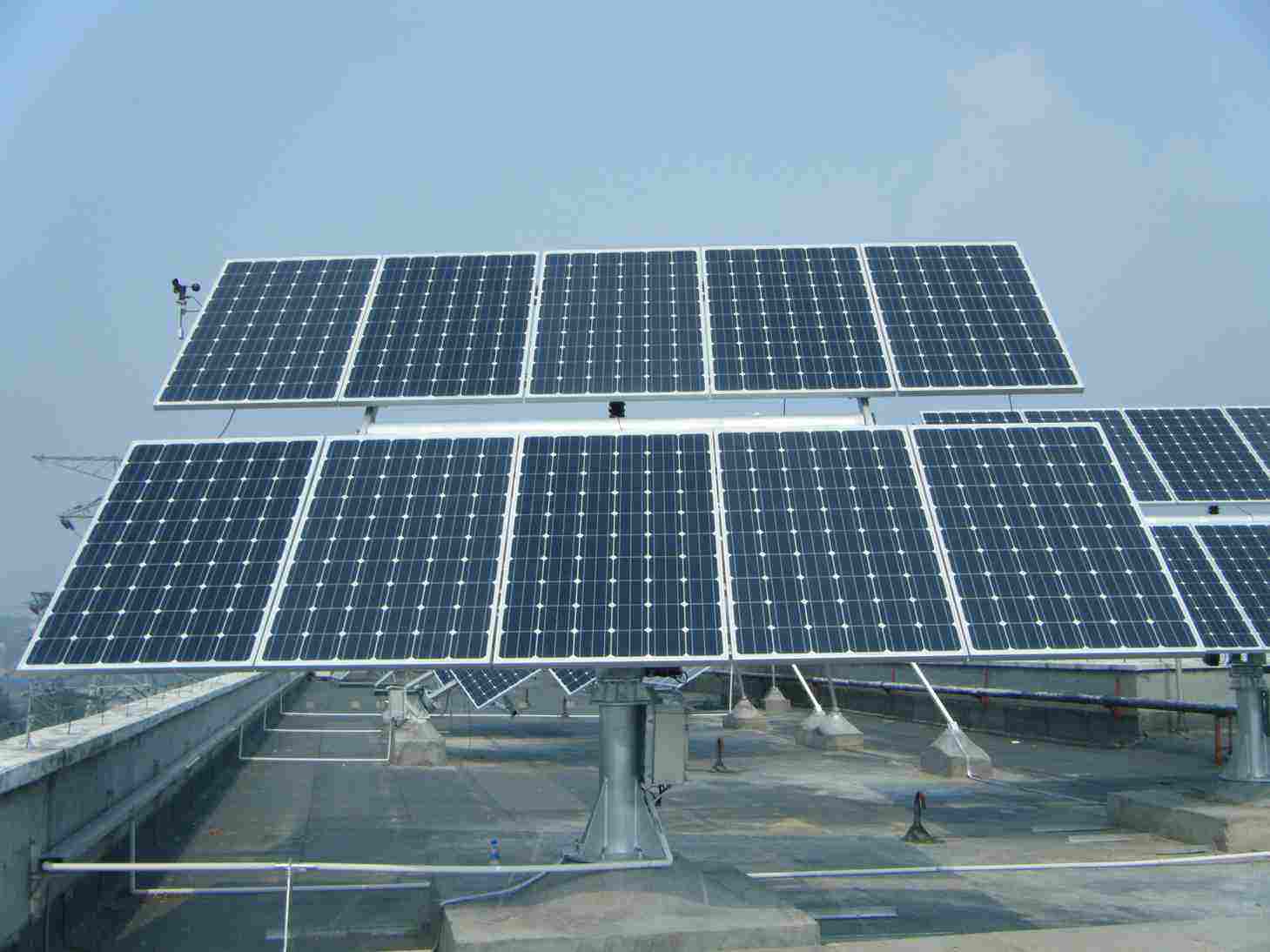

    Applicatons



    Customized Services


    1. Special design based on different applications and projects
    2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
    3. Different colors are available based on RAL code; our standard color is RAL 9006.
