VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System
Description
Hangtuo have profound expert knowledge on designing, developing and manufacturing slewing drives. We have more than 10 years’ experience. Our team is specialized in researches and develops in that particular area. Our experience covers the fields of tracking technologies for photovoltaic systems, mechanical engineering, slewing drive technology.
Quick Reaction Times
Long-term experience in intelligent-process control for mass production as well as in customer-oriented product development.
Product Advantages
Slewing Drive (Enclosed Type, Vertical Type, Dual Axis Type, Precision Type) Hourglass worm slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.
Stable Quality
Set up Critical Quality Inspection Points, Total 9 positions through the plant. We set up critical quality inspection points , make quality inspection instructions to control strictly in key process. We use high precision & measurement gauge calibration.
Advanced measurement device

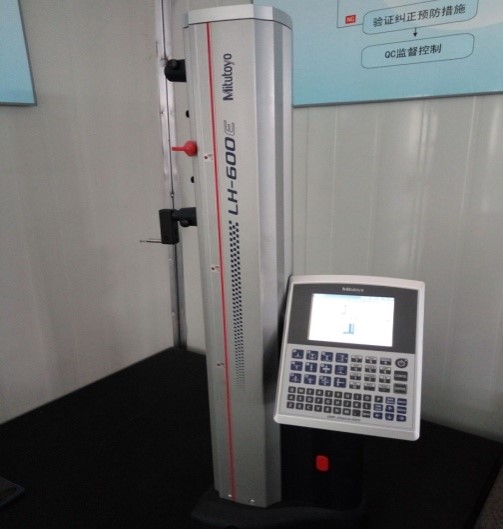

Measurement should be calibrated, check and only qualified gauge can be used.
Technical Drawing
For further detailed product technical parameters, contact us for product catalog and detailed sales drawings.
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
|
|
