    Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors

    Ask Lasest Price
    Brand Name : HangTuo
    Model Number : SDE3
    Certification : CE, ISO9001
    Price : USD 100~1200/ pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 pcs per month
    Delivery Time : 15~45 days
    • Product Details
    • Company Profile

    Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors

    Hourglass Worm Gear Slewing Ring Bearing For Parabolic Csp With Curved Mirrors
    Description

    The slewing drive is a perfect motion control product for the application which requires rotational torque strength, low speed and good accuracy.


    Slew drive for solar: it is designed in solar photovoltaic panel rotation and improves power generation efficiency. Concentrated solar powers include solar concentrator solar dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker(single axis & dual axis solar tracking solutions).


    For wind generators: Slewing drives are used to rotate the pedestal in wind turbines


    For Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, cranes, timber grab

    For Industry Market: Automation and CNC assembly line, robotic arm


    For Satellite: space communications and global positioning systems in satellite dish

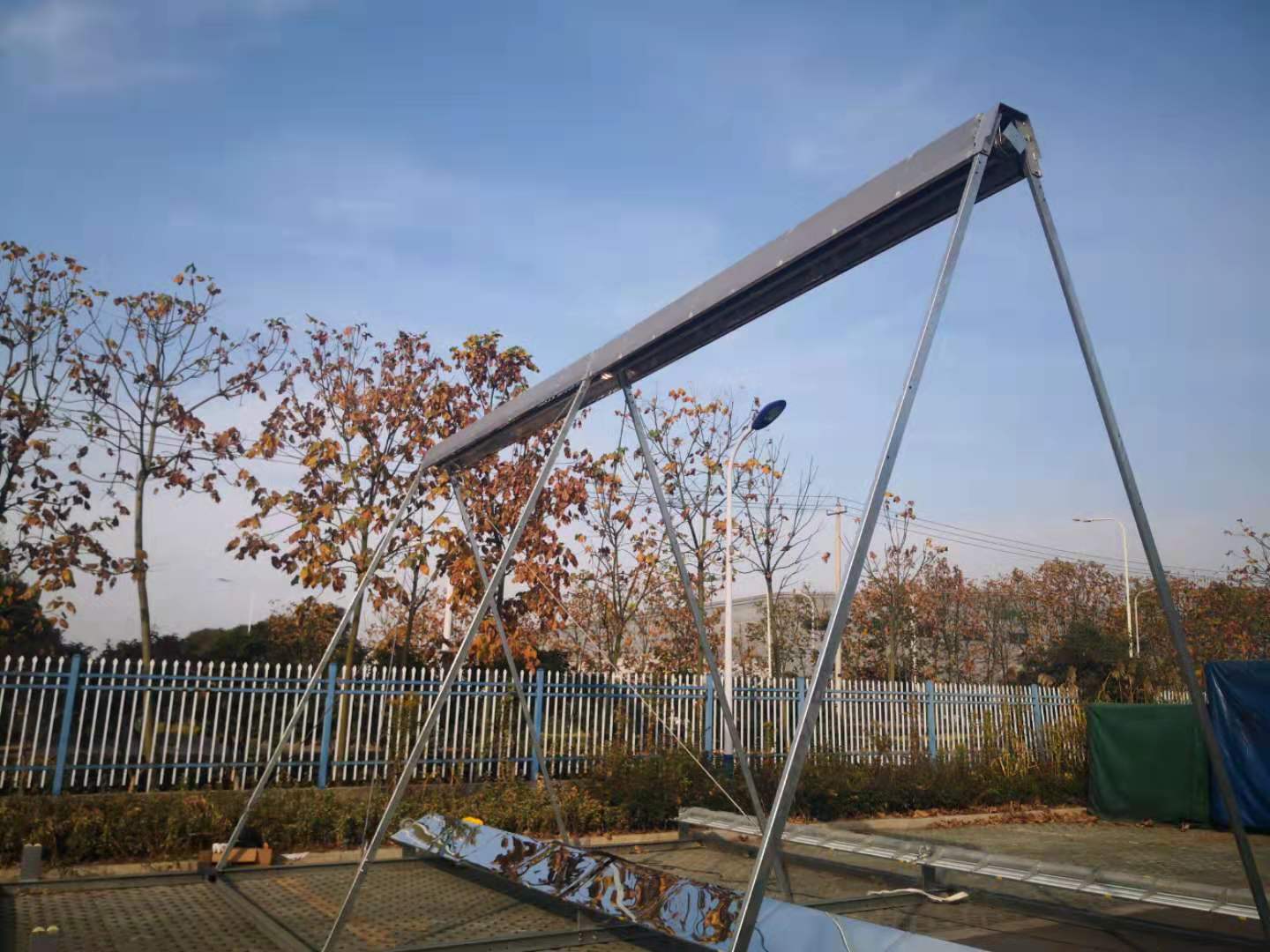

    Applicaiton in Parabolic CSP​

    Slewing drives are a perfect rotating part for CSP parabolic trough. A parabolic trough applies sun-tracking curved mirrors (called parabolic troughs) to maximize the sun’s energy and consequently the efficiency of heat production. The sun's rays are captured and reflected onto a receiver pipe filled with a heat transfer fluid (water or thermal oil) that is located in the central point of the troughs.


    Advantages
    1. Our technical team is focusing on slewing drive design and develop for more than 10 years
    2. Strict process control, leading test methods, cargo traceability
    3. Professional techical service team to solve any problem of slewing drive

    SDE Series Performance Parameter

    ModelRatioRated Output Torque (N.m)Tilting Torque (N.m)Holding Torque (N.m)Axial Load (kN)Radial Load (kN)EfficiencyPrecision (°)Self-lockingWeight (kg)
    3"31:160015005800101540%≤0.1Yes25
    5"37:180060009200162740%≤0.1Yes34
    7"57:12000750013200345840%≤0.1Yes56
    9"61:1430016000272006013040%≤0.1Yes92
    12"78:1580025000405607719040%≤0.1Yes160
    14"85:16750480004420011023040%≤0.1Yes224
    17"102:19460670005304014239040%≤0.1Yes320
    21"125:116000890006500033764040%≤0.1Yes492
    25"150:1214501120008900047695040%≤0.1Yes705


    About Us

    We are committed to researching, developing and applying high quality, precision transmission equipment products, who provides reliable mechanical actuator for horizonal single axis, dual-axis photovoltaic tracking system, CSP, CPV solar tracking design.
