Providing Innovative and Cost-effective Slewing Drives
7 Years
| Ask Lasest Price | |
| Brand Name : | HangTuo |
| Model Number : | VE9" |
| Certification : | CE, ISO9001 |
| Price : | USD 280~504 / pc |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 2000 pcs per month |
| Delivery Time : | 15~45 days |

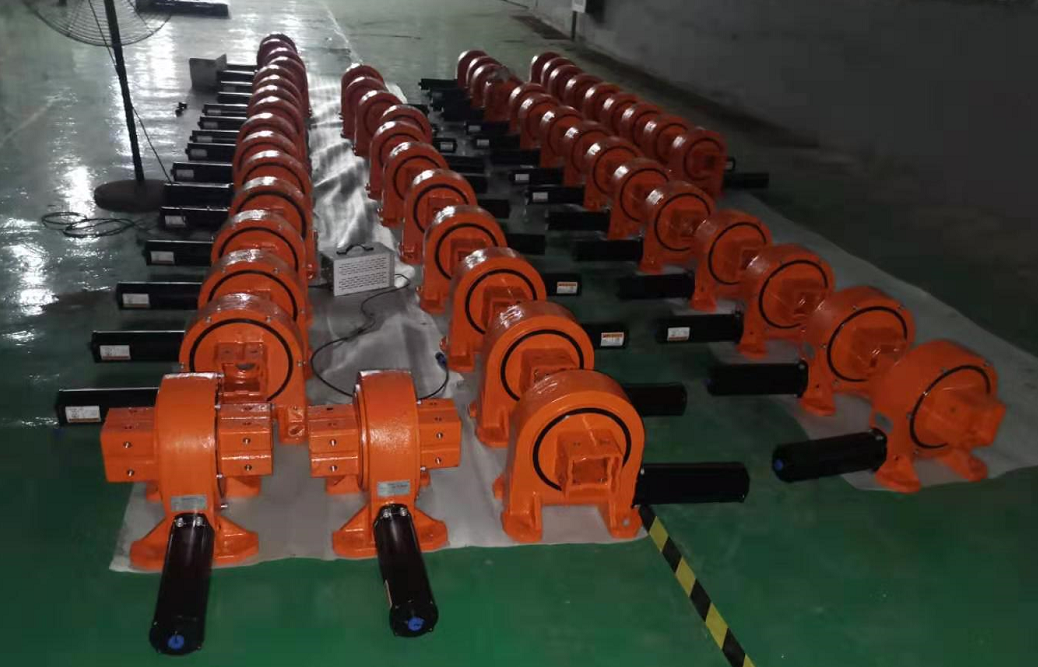

9 Inch Slew Drive Gearbox Fitted To 12*12 Main Torque For Single Axis Tracking System
Description
The VE9 is a robust enclosed worm gear slewing drive solution equipped for high duty cycle, low-speed (<1 RPM) applications. It mainly applied in solar energy.
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. Hard stop inside in case the mulfunctioning of the software control system
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Parameters of VE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic
motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard
color is RAL 9006.
Applicatons
Flat single axis solar tracking system
Tilted single axis solar tracking system
CSP, fresnel, parabolic absorber
Single axis tracking system includes the flat single axis and tilted single axis.
|
|
