Providing Innovative and Cost-effective Slewing Drives
7 Years
| Ask Lasest Price | |
| Brand Name : | HT |
| Certification : | ISO9001, CE |
| Price : | 150~1500 USD |
| Delivery Time : | 5~65 days |
| Payment Terms : | T/T, Payoneer |
| Supply Ability : | 400 pcs/day |
| Model Number : | SE12" |

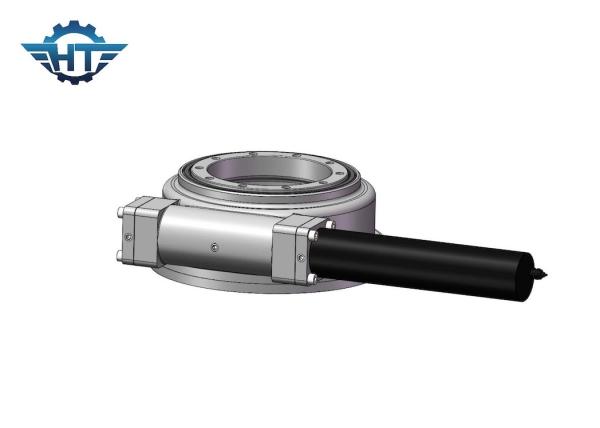

The Solar Tracker Slew Drive is available in a range of motor rated voltage options from 12V to 380V. This means that it can be customized to meet the specific requirements of different solar power plants. The product comes with a 5-year guarantee, ensuring that it is a reliable and durable solution for solar power plants.
The Solar Tracker Slew Drive is powered by a 24VDC power supply, which is a standard voltage for most solar power plants. This makes it easy to install and integrate into existing systems. The product is available in a standard color of RAL 9006, which is a silver color that blends in well with most solar panel designs.
The Solar Tracker Slew Drive is capable of providing a tilting torque range of 1500~112000Nm, which allows it to handle the weight of large solar panels. It is a powerful and reliable solution for solar power plants, ensuring that the panels are always positioned at the optimal angle for maximum power generation.
The Solar Tracker Slew Drive is a type of slew drive gearbox, which is a type of gearbox that is used to provide smooth and accurate rotation of heavy loads. The product is designed to withstand harsh weather conditions, making it suitable for use in a range of environments. It is a highly versatile product that can be used in a range of solar power applications.
| Technical Parameter | Description |
|---|---|
| Product Name | Solar Tracker Slew Drive |
| Guarantee | 5 Years |
| Application | Satellite Antenna, Solar Tracking System |
| Standard Color | RAL 9006 |
| Inspect Report | Yes |
| Motor Rated Voltage | 12V~380V |
| Installation Site | Open Field |
| Back Holding Torque | 1800~89000Nm |
| Power Supply | 24VDC |
| Tilting Torque | 1500~112000Nm |
| Rotating Type | Single Axis, Dual Axis |
The Solar Tracker Slew Drive is made from the material 42CrMo and is designed to protect against dust and water with an IP66 rating. This product has a tilting torque ranging from 1500 to 112000Nm and is available in single-axis and dual-axis rotating types, making it versatile for various solar tracking systems. The installation site for this product is an open field, making it suitable for solar power generation.
The Solar Tracker Slew Drive is suitable for a wide range of applications, including slewing drive for PV stations, solar tracker slew drive, and vertical slewing drives. This product is ideal for solar power generation and tracking systems, where it is necessary to rotate solar panels to follow the sun's movement.
The minimum order quantity for our slewing drive for PV station is only 1 unit, with a price range of 150~1500 USD. Our packaging details include plywood, ensuring that your order arrives safely. Delivery time ranges from 5~65 days, depending on your location and the quantity ordered. We accept payment terms of T/T and Payoneer.
With a supply ability of 400 pcs/day, we can meet your needs quickly and efficiently. Our solar tracker slew drive is ideal for applications such as satellite antenna and solar tracking systems. The back holding torque ranges from 1800~89000Nm, with material made of 42CrMo.
Our precise design ensures an accuracy of ≤ 0.1, while the radial load ranges from 12~950kN. Trust in our worm gear slewing drive to provide the best performance for your solar tracking needs.
|
|
